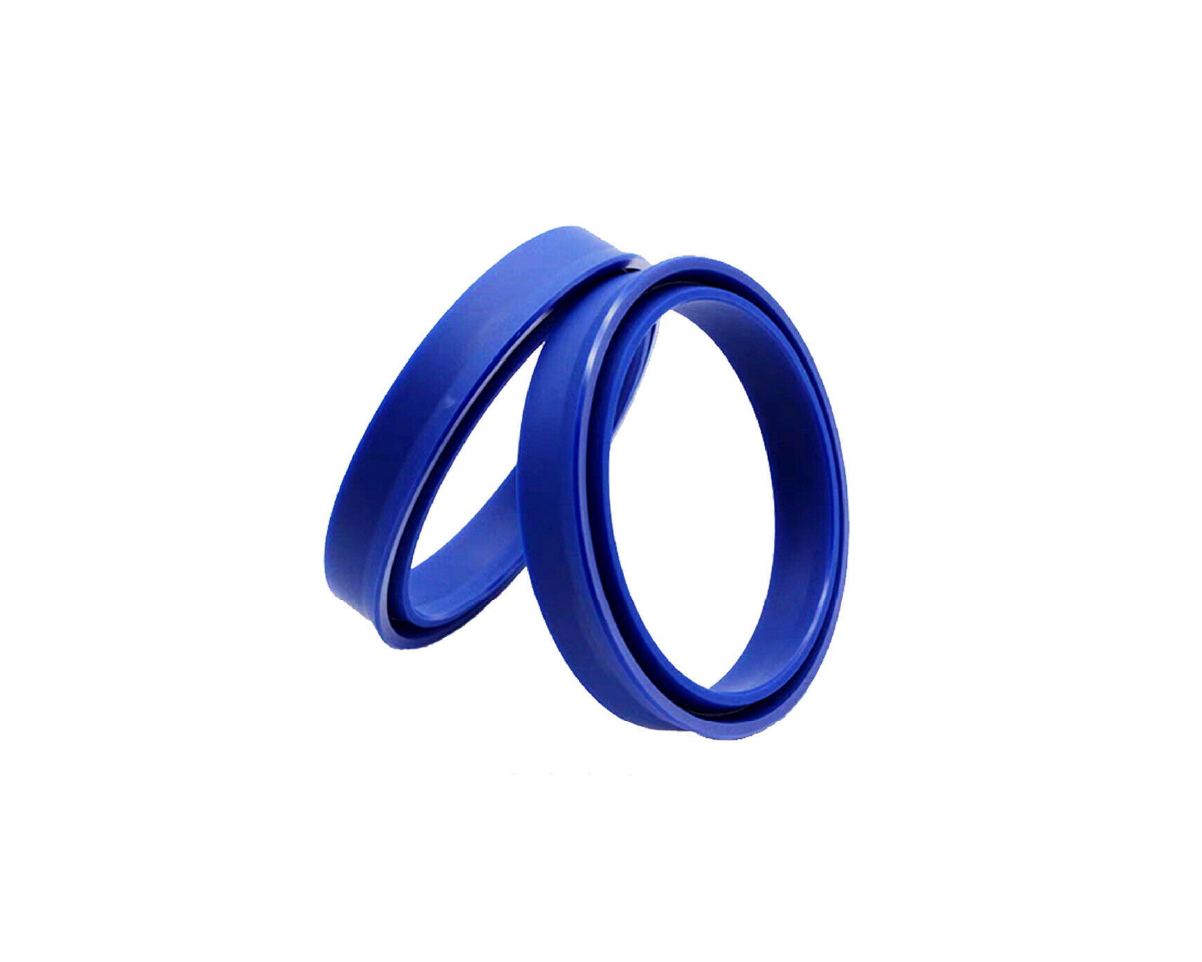

Kastaş piston seals provide reliable fluid sealing in both dynamic and static conditions. They are highly resistant to extrusion, withstand sudden pressure changes, and offer a long service life.
Operating parameters depend on the specific model material and geometry
Working pressure up to 450 bar for profiles designed for heavy-duty conditions.
Temperature range from -200°C to +260°C for specialized PTFE materials, and from -50°C to +135°C for polyurethane (PU) and nitrile (NBR) compounds.
General technical specifications
Operating parameters depend on the specific model material and geometry
Working pressure
up to 450 bar for profiles designed for heavy-duty conditions.
Temperature range
from -200°C to +260°C for specialized PTFE materials, and from -50°C to +135°C for polyurethane (PU) and nitrile (NBR) compounds.
01These components are widely used in mobile hydraulics, the mining industry, and various industrial equipment.
02Main design and operational advantages
03Maximum leakage protection: a special multi-lip geometry fits tightly against the cylinder wall, fully blocking fluid bypass even during long standstill periods.
04Resistance to high pressure and shocks: models designed for heavy-duty conditions are equipped with fiberglass-reinforced thermoplastics or backup rings. They withstand instantaneous pressure spikes up to 400 bar.
05Low friction and smooth movement: the combination of PTFE, TPU, and NBR materials reduces initial friction and eliminates stick-slip movement at low speeds.
06High wear resistance: fabric-reinforced elastomers and premium polyurethane resist abrasive particles, contaminated environments, and irregular cylinder surfaces.
07Compact and easy installation: multi-component sets eliminate the need to machine additional guide rings. They are compatible with ISO 7425/1, simplifying replacement.
