Hydraulic HouseHoses & FittingsCAST

CAST Fittings

CAST S.p.A. hydraulic hose fittings provide high reliability, durability, and flexibility in high-pressure systems. Manufactured by the well-known Italian brand CAST S.p.A., these carbon steel and stainless steel components are designed for heavy industrial and marine applications.

Technical Specifications

Fitting Type / Standard	Popular Thread Types
DIN 2353 / ISO 8434-1	Metric parallel, BSPP, BSPT, NPT.
SAE J514 / ISO 8434-2	UNF / UN-2A.
BSI 5200	BSPP.
ORFS SAE J1453	UNF / UN threads.
Hose fittings (C4 series)	Standard ISO 12151 configurations.

01Main advantages:
02High-pressure resistance and versatility
03Adapted series: components are divided into three categories: extra-light (LL) up to 100 bar, light (L) up to 500 bar, and heavy/strong (S) series for working pressures up to 800 bar.
04Extreme durability: heavy (S) series fittings easily withstand high temperatures and harsh environmental conditions.
05Leakage protection and sealing technology
06Perfect sealing: when nominal pressure limits are observed, they ensure a 100% leak-free system.
07Metal-to-metal contact: BSI 5200 standard adapters use precise mechanical contact and special elastomer rings to prevent deformation.
08Advanced cutting rings: B3, B4 and 7-level B7 cutting rings ensure reliable pipe grip and fixation.
09Material quality and durability
10Stable structure: high-quality steel metallurgy eliminates weak points in the material.
11Anti-corrosion protection: modern environmentally friendly zinc-plating technology significantly increases the oxidation resistance of carbon steel models.
12Precise machining: high-precision production guarantees strict dimensional tolerances, making installation easier.
13International standards and efficiency
14Compatibility: fully complies with global standards: DIN 2353, ISO 8434-1, SAE J514, BSI 5200 and ORFS SAE J1453.
15Fast installation: the swivel nut design allows complex hydraulic circuits to be quickly assembled or disassembled.
16Optimal price: despite ISO 9001-certified top quality, they are more affordable than other premium European brands.

CAST Fittings

Technical Specifications

Similar Products

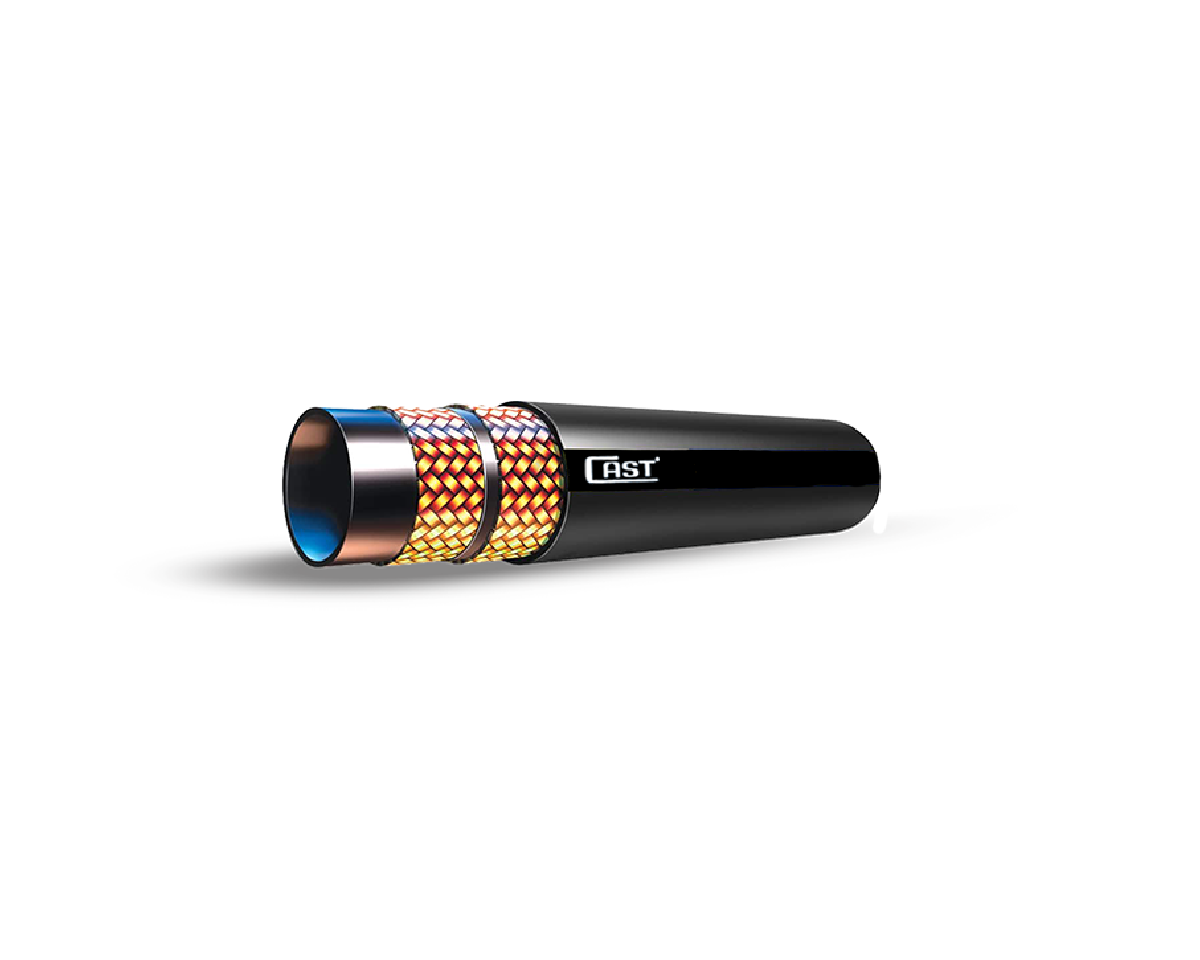

CAST 2SN Hydraulic Hose

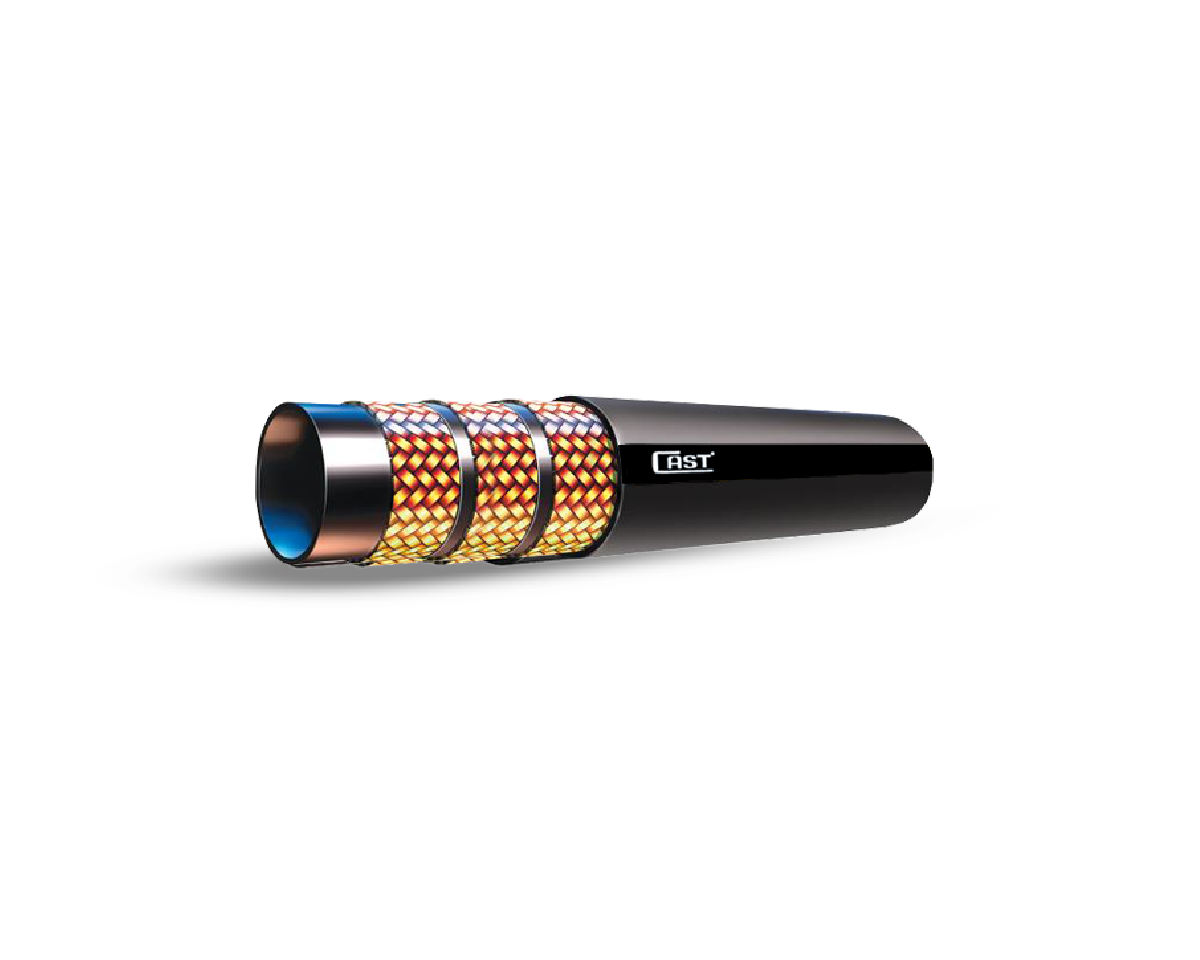

CAST 4SP Hydraulic Hose

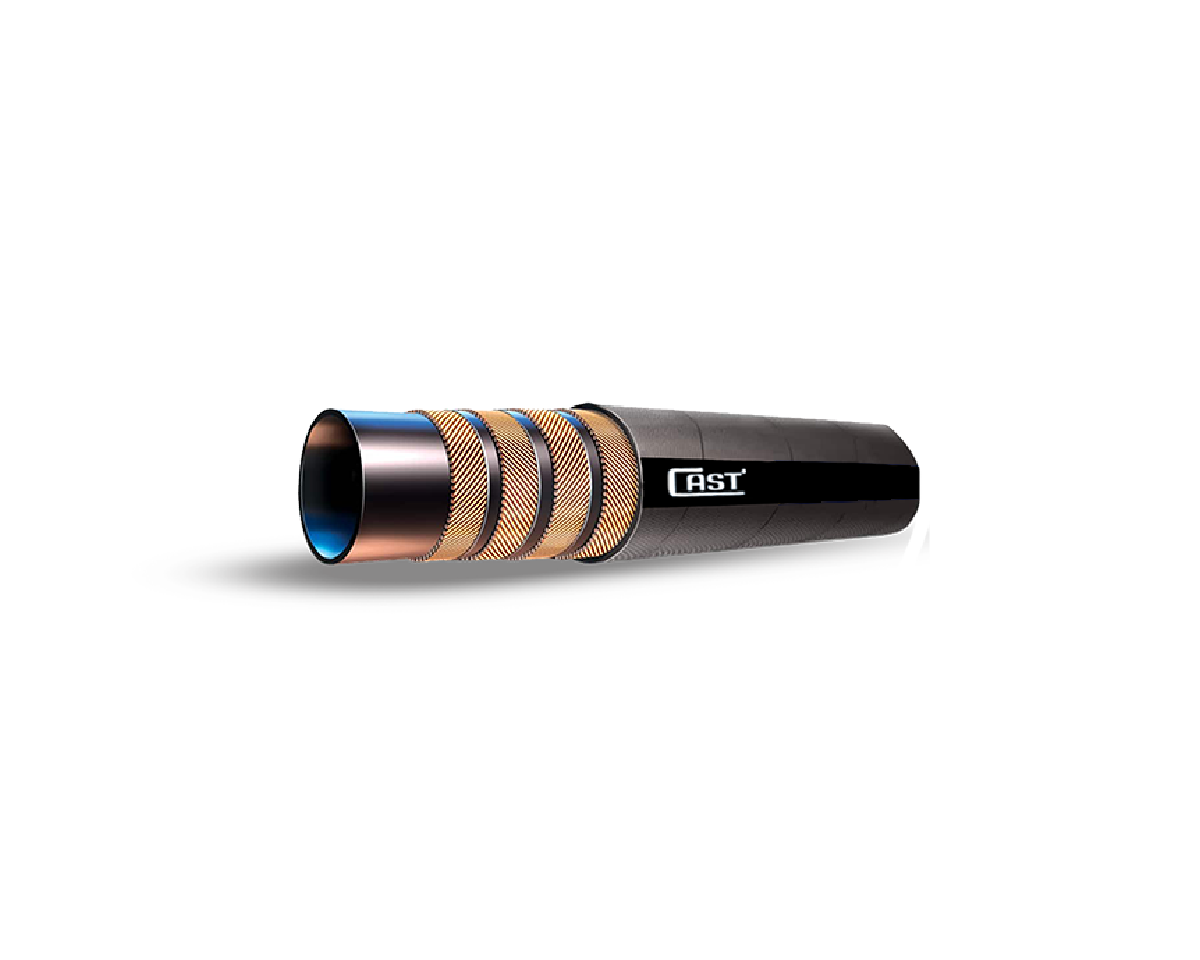

CAST 4SH Hydraulic Hose

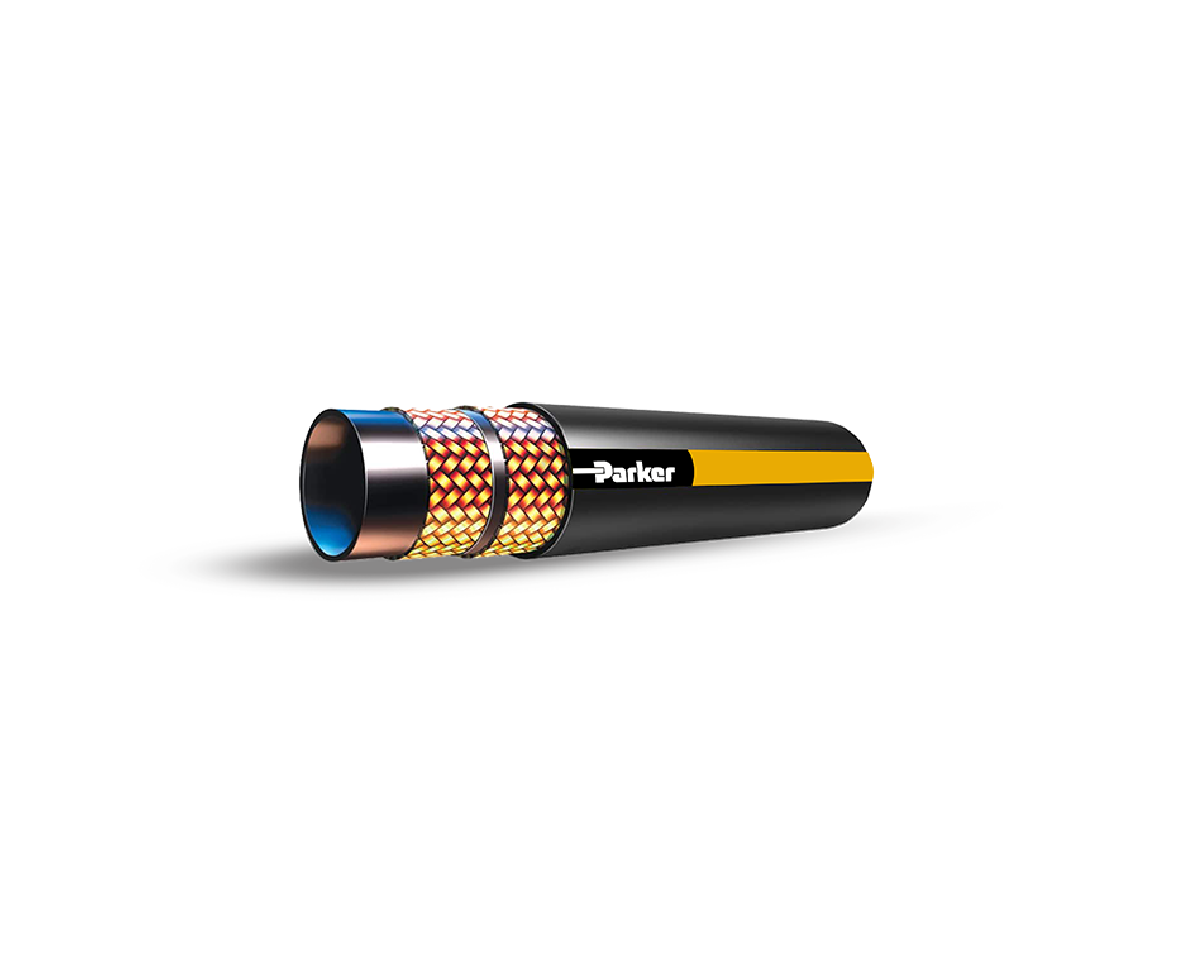

PARKER 2SC Hydraulic Hose

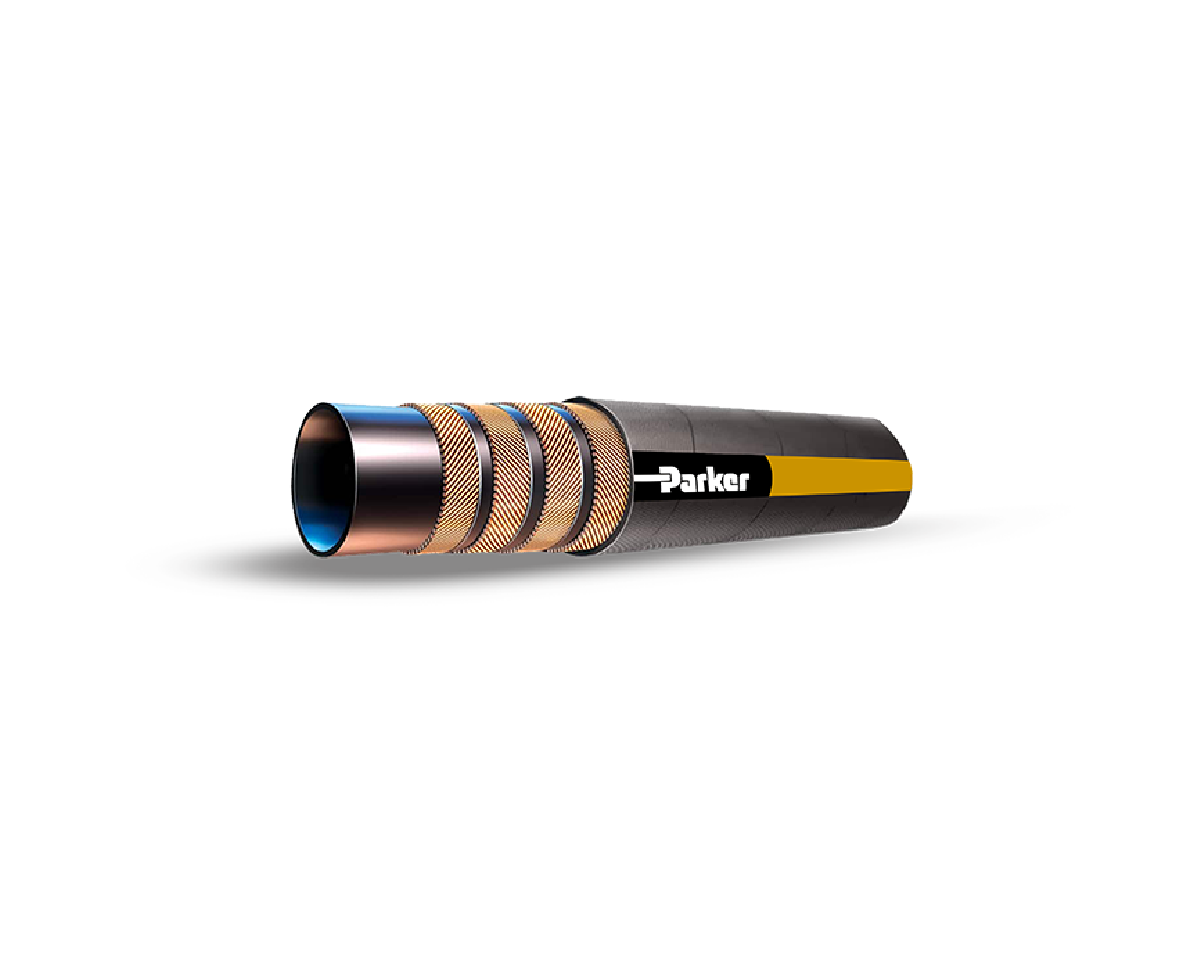

PARKER 4SH Hydraulic Hose
